Quad Class Reference
[Shapes]

Quad shape node. More...

#include <Quad.h>

Inheritance diagram for Quad:

[legend]

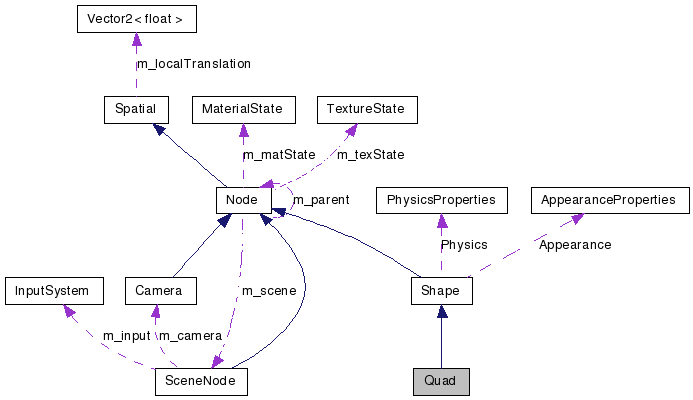

Collaboration diagram for Quad:

[legend]

List of all members.

Public Member Functions
	Quad ()
	Constructs a new Quad with all points at the origin.
	Quad (const std::string &name)
	Constructs a new Quad with all points at the origin.
	Quad (const Vertex &p1, const Vertex &p2, const Vertex &p3, const Vertex &p4)
	Constructs a new Quad with four vertices.
	Quad (const Vector2f &p1, const Vector2f &p2, const Vector2f &p3, const Vector2f &p4)
	Constructs a new Quad with four vertices.
	Quad (float x, float y, float width, float height)
	Constructs a new Quad for a given rectangle.
	Quad (const std::string &name, const Vertex &p1, const Vertex &p2, const Vertex &p3, const Vertex &p4)
	Constructs a new Quad with four vertices.
	Quad (const std::string &name, const Vector2f &p1, const Vector2f &p2, const Vector2f &p3, const Vector2f &p4)
	Constructs a new Quad with four vertices.
	Quad (const std::string &name, float x, float y, float width, float height)
	Constructs a new Quad for a given rectangle.
	Quad (const Quad &copy)
	Copy constructor for Quad.
ShapeType	type ()
	Returns the Quad's type.
void	setRect (float x, float y, float width, float height)
	Sets the vertices of the Quad to represent the specified rectangle.
Vertex &	v1 ()
	Gets the first vertex of the Quad.
Vertex &	v2 ()
	Gets the second vertex of the Quad.
Vertex &	v3 ()
	Gets the third vertex of the Quad.
Vertex &	v4 ()
	Gets the fourth vertex of the Quad.
Protected Member Functions
virtual void	draw ()
	Called when a Node is to be drawn.

---

Detailed Description

Quad shape node.

The Quad class is type of Shape which draws a four point polygon

---

Constructor & Destructor Documentation

Quad::Quad

(

const std::string &

name

)

[inline]

Constructs a new Quad with all points at the origin.

Parameters:

name

name of Node

Quad::Quad	(	float	x,
		float	y,
		float	width,
		float	height
	)

Constructs a new Quad for a given rectangle.

Parameters:

	x	lower left x coordinate of rect
	y	lower left y coordinate of rect
	width	width of rect
	height	height of rect

Quad::Quad	(	const std::string &	name,
		const Vertex &	p1,
		const Vertex &	p2,
		const Vertex &	p3,
		const Vertex &	p4
	)

Constructs a new Quad with four vertices.

Parameters:

name

name of Node

Quad::Quad	(	const std::string &	name,
		const Vector2f &	p1,
		const Vector2f &	p2,
		const Vector2f &	p3,
		const Vector2f &	p4
	)

Constructs a new Quad with four vertices.

Parameters:

name

name of Node

Quad::Quad	(	const std::string &	name,
		float	x,
		float	y,
		float	width,
		float	height
	)

Constructs a new Quad for a given rectangle.

Parameters:

	name	name of Node
	x	lower left x coordinate of rect
	y	lower left y coordinate of rect
	width	width of rect
	height	height of rect

---

Member Function Documentation

ShapeType Quad::type

(

)

[inline, virtual]

Returns the Quad's type.

Returns:

returns the type Shape::ST_CONVEX

Reimplemented from Shape.

void Quad::setRect	(	float	x,
		float	y,
		float	width,
		float	height
	)

Sets the vertices of the Quad to represent the specified rectangle.

Parameters:

	x	lower left x coordinate of rect
	y	lower left y coordinate of rect
	width	width of rect
	height	height of rect

virtual void Quad::draw

(

)

[protected, virtual]

Called when a Node is to be drawn.

Override this method in subclasses to tell a Node how to draw itself on the screen. Drawing should take place in object space (the parent Nodes will apply their own transforms to the rendering stack).

Reimplemented from Node.

---

The documentation for this class was generated from the following file:

• Nodes/Shapes/Quad.h
